    DEVELOPMENT
p3



<Previous> <Full size> <Next>

An Auburn University Ph.D. student in material science engineering assisted in polishing the interior of the flight tube (one half shown)



1


<Previous> <Full size> <Next>

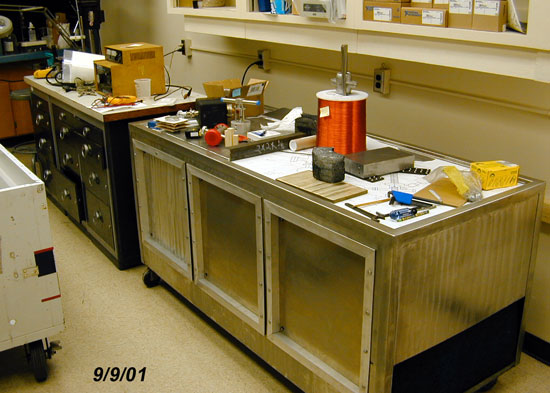

Early stages of development in ANIMAL

2



<Previous> <Full size> <Next>

A round of cold-rolled mild steel was used for machining the pole pieces of the electromagnet.

3




<Previous> <Full size> <Next>

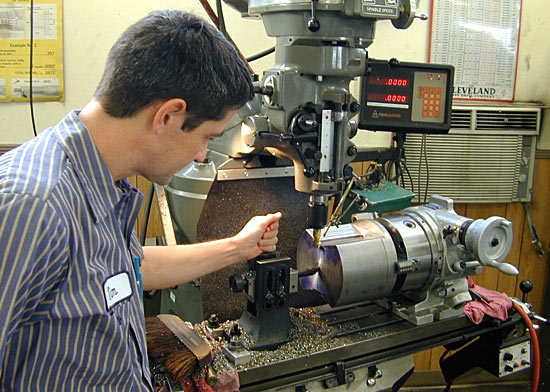

Auburn university machinist fabricating the pole pieces of the electromagnet


4




 <Previous> <Full size> <Next>

Frame (three pieces) and pole pieces of the electromagnet following machining

5



<Previous> <Full size> <Next>

This is a test text:  Auburn Noble Isotope Mass Analysis Laboratory Department of Geology and Geography
Auburn  Noble Isotope Mass Analysis Laboratory Department of Geology and Geography
6




<Previous> <Full size> <Next>

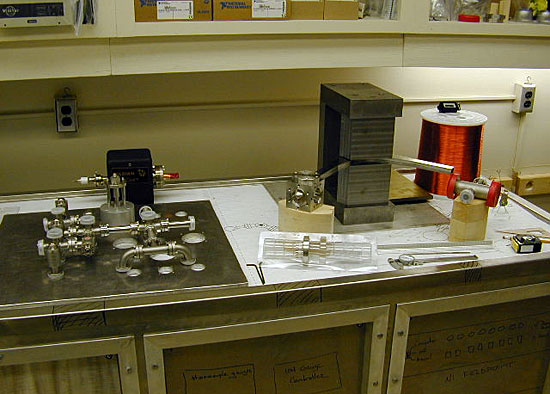

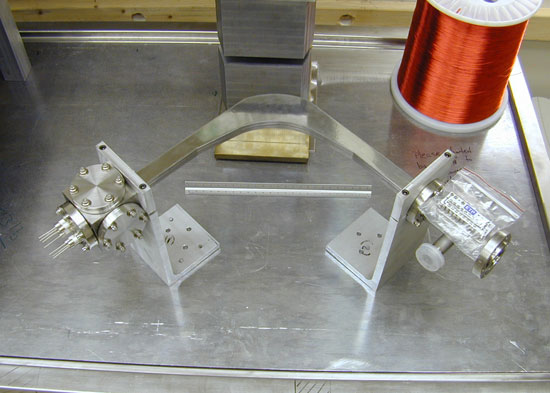

Early development and testing of the placement for the source, flight tube, detector (note ETP multiplier) and electromagnet. The fine wire, at right, was used in winding the secondary electromagnet coils (for fine adjustment and computer control).

7




<Previous> <Full size> <Next>

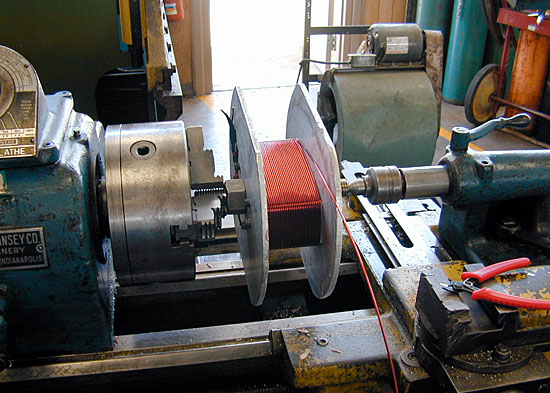

Winding a main coil for coarse control of the electromagnet

8



<Previous> <Full size> <Next>

AU Geology graduate student Sarah Lavallee winding a coil for the main (coarse) magnet control, in the Auburn University Central Machine Shop

p1



<Previous> <Full size> <Next>

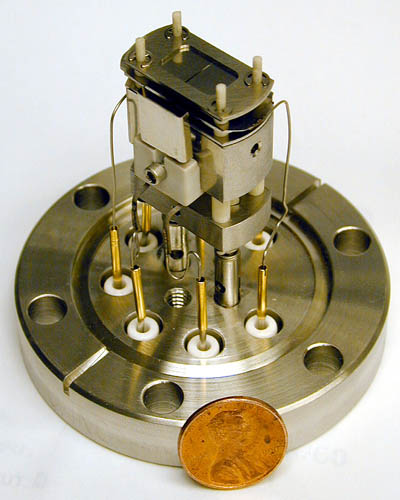

View of the electron-impact ion source, based on Wallington (1971; after Nier, 1947). The source was designed to fit conveniently within a 2.75" cube, and is mounted on a 2.75" feedthrough flange

p2



<Previous> <Full size> <Next>

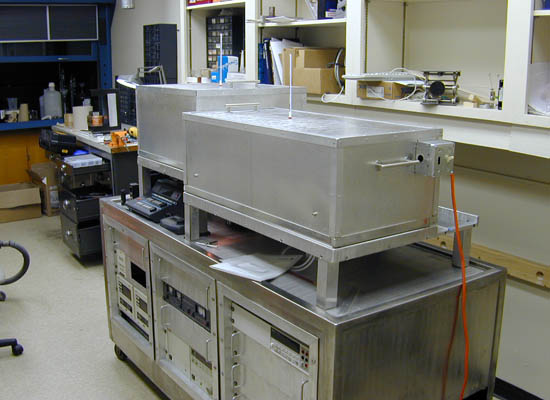

The table design and equipment layout permits the extraction line and mass spectrometer to be baked independently at temperatures up to 350 °C.




<Previous <Full size> <Next>

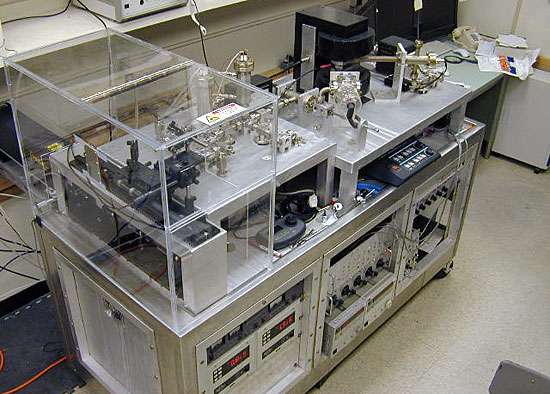

The complete system.
